How Should I Prepare the Ground for My Capsule House?
The short answer: it depends on your land, your plans and your local rules — and that is exactly why so many capsule buyers get it wrong. The longer answer is a sequence: check the site first, narrow the foundation options second, and confirm the permits before anyone digs. Do it in that order, and your capsule will sit level and dry for decades. Skip a step, and you will meet the mistake later — in a binding door, a damp corner, or an inspection you didn't expect.
Step 1: Check the Land Before You Choose Anything
The ground decides which foundation is even in play, so walk the site before comparing products:
Soil type. Dig a test hole. Dense, dry soil supports almost any base; soft or wet ground pushes you toward screw piles or a raft. If you're unsure, a simple soil test by a local engineer costs little and saves far more.
Drainage. Look at where water goes after rain. If the spot holds water, plan a fall and drainage away from the unit — standing water under a capsule attacks the base and creeps into the structure.
Slope. A level pad is the easy case. On a slope you either cut and fill to level it, or use piers to step the unit up the hill.
Access. Can a delivery truck — or the crane for a fully assembled unit — actually reach the placement point? A perfect foundation is useless if the unit can't get to it.
A practical sizing rule: whatever you build, make the base at least 90 cm (about 3 ft) larger than the capsule on every side. That margin keeps the unit stable and stops water from splashing up into the walls.
Step 2: Know Your Five Foundation Options
Once you understand the site, compare what's actually available:
Screw piles — steel shafts twisted into the ground. Fast to install, no big excavation, easy to remove when you move on. Excellent for soft or mixed soil, and they leave the land largely undisturbed.

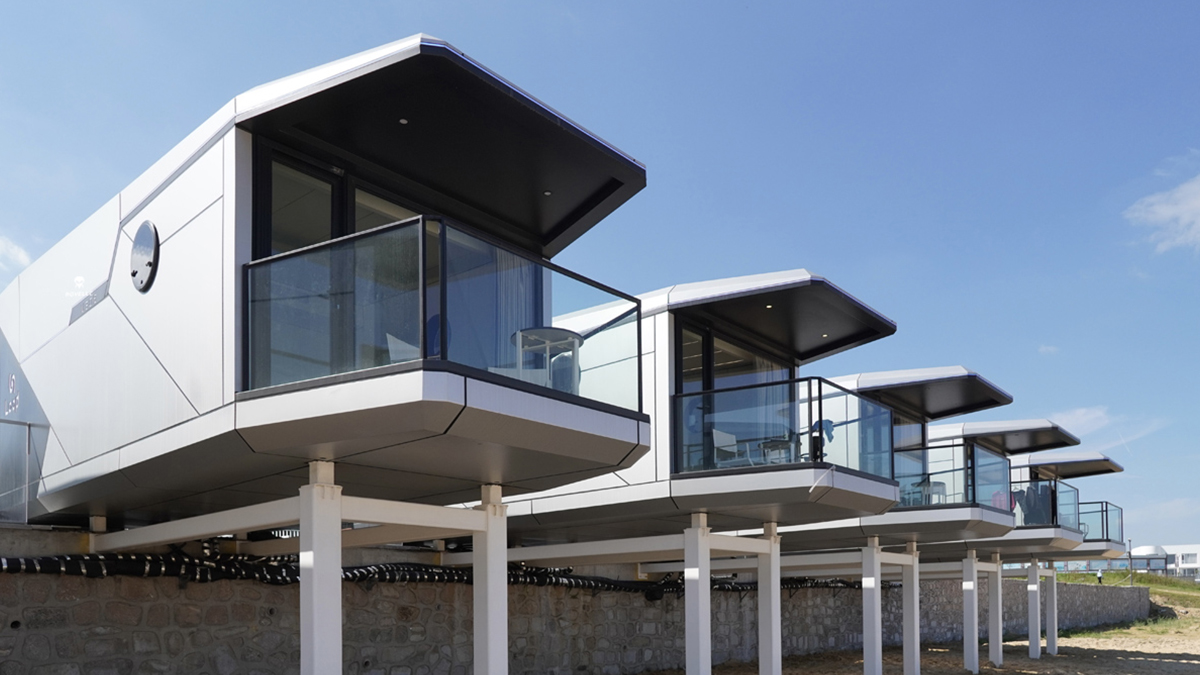

Piers — concrete or steel columns set into holes with beams across the top. They lift the unit off the ground, which helps air circulation and drainage, and they handle slopes well.
Concrete slab — a poured pad for permanent homes. Rock-solid, long-lived, easy to clean underneath — but expensive and effectively permanent.
Concrete blocks — stacked support points with beams laid across. The budget option: cheap and simple for small units, though less robust and prone to cracking in freeze-thaw climates.
Raft foundation — a thick reinforced concrete spread that distributes weight over a large area. Built for soft or flood-prone ground; the most engineered and most expensive option.
Step 3: Match the Foundation to Your Lifestyle
Your plan for the capsule shortlists the options faster than anything else:
Your plan | Best fits | Why |
|---|---|---|
Settle permanently | Concrete slab, raft | Strong, long-lived, inspection-friendly |
May move in a few years | Screw piles, piers | Removable; the site can recover |
Temporary / rental phase | Screw piles, blocks | Lowest commitment, fast install |
If a future move is even possible, avoid pouring permanent concrete. Screw piles are the closest thing to a reusable foundation — you unscrew them and take them with you.
Step 4: Overlay Budget, Soil and Climate
Budget. Cost runs from cheapest to most expensive in a clear order: blocks and screw piles, then piers, then slab and raft. Cheap options suit stable soil and smaller units; expensive options buy permanence and load capacity.
Soil. Blocks and slabs need stable, well-drained ground. Piers tolerate slopes. Screw piles handle soft, sandy or disturbed soil gracefully. Rafts exist for the hardest case — soft, wet ground where nothing else holds.
Climate. In flood zones, raise the unit on piers or build a raft — never a low slab. In freeze-thaw regions, blocks shift and crack; slabs and piles behave better if installed below frost depth. In storm or seismic areas, any permanent option must be engineered for local wind and earthquake loads — that's what the building code is for.
Step 5: Check Permits and Code Before Digging
The legal side decides whether your preferred foundation is even permitted:
Permanent structures (slab, raft, fixed piers) generally need a building permit and inspection — especially if the capsule qualifies as an ADU, which usually requires attachment to a permanent foundation.
Movable units on wheels or removable bases may only need DMV registration rather than a building permit in many US states.
The three classic inspection failures on imported capsules: safety glass that doesn't meet local standards, fixed porthole windows that fail emergency-egress requirements, and entry doors that don't meet wind-load ratings. All fixable — but only if you know they're coming. Start with our capsule house legal permits guide and confirm details with your local building department.
The Decision Framework
Your situation | Recommended foundation | Runner-up |
|---|---|---|
Permanent home, stable soil | Concrete slab | Raft |
Sloped or uneven site | Piers | Screw piles |
Soft or sandy soil | Screw piles | Raft |
Flood-prone area | Raft (or piers above flood level) | — |
Tight budget, small unit | Concrete blocks | Screw piles |
May relocate within 3-5 years | Screw piles | Piers |
Heavy / large capsule (38-58 m²) | Concrete slab | Raft |
FAQ
Which foundation is best if I might move my capsule later?
Screw piles. They install quickly, come out cleanly and let the site recover — piers are the runner-up if the terrain doesn't suit piles.
Can I prepare the ground myself?
The site checks and marking are DIY-friendly, and block or screw-pile bases are achievable with basic tools. Slabs and rafts are not — they need excavation, reinforcement and proper curing, which is work for local professionals.
How do I know if my soil is suitable?
Dig a test hole and check whether the ground is dense and dry or soft and wet. Soft, wet or organic soil needs a specialist foundation (piles or raft) and a proper soil test — a local engineer's assessment is cheap insurance.
Does every capsule house foundation need a permit?
Permanent foundations generally do; movable units may only need DMV registration. Confirm with your local building department first — and if the capsule qualifies as an ADU, expect the permanent-foundation requirement to apply. For the full buying picture — land, permits and the unit itself — also see our glamping capsule buying guide.
Final Verdict & CTA
Preparing the ground for your capsule house is not about picking the "best" foundation in the abstract — it's about the one that fits your land, your plans and your local code. Check the site, narrow the options, confirm the permits, then build. Done in that order, the foundation becomes the quiet reason your capsule stays level and dry for decades.
